Investigating iOS App Snapshots
11/09/2026 Friday
iOS App Snapshots are cached visual representations created by iOS for
application screens. These snapshots are used by the system for app
switching, transitions, and application state restoration, and they may
remain in SplashBoard snapshot folders as files associated with system
or third-party application identifiers.
Digital Forensics Value of iOS App Snapshots
iOS App Snapshots artifacts can provide useful context when visible
application state and recent app activity need to be reviewed. Package
names may identify which applications had cached snapshots, while
filenames, extensions, size values, and hashes can help locate,
deduplicate, and validate the related snapshot files. File-system
timestamps may help show when a snapshot file was created, modified, or
accessed, and the snapshot content itself may preserve information that
was visible on screen at the time it was cached. These records should be
correlated with application data, notifications, usage records, and
file-system activity so that the snapshot evidence is used as supporting
context rather than standalone proof of user action.
Location of iOS App Snapshots
iOS App Snapshots artifacts are commonly associated with SplashBoard
snapshot storage on iOS devices. The parsed records may be associated
with the following generic paths:
/private/var/mobile/Library/SplashBoard/Snapshots/
/private/var/mobile/Containers/Data/Application/<APP_UUID>/Library/SplashBoard/Snapshots/
The <APP_UUID> value represents an iOS-assigned application
container identifier.
Analyzing iOS App Snapshots Artifacts with ArtiFast
This section will discuss how to use ArtiFast to extract iOS App
Snapshots artifacts from iOS device files and what kind of digital
forensics insights can be gained from the artifact.

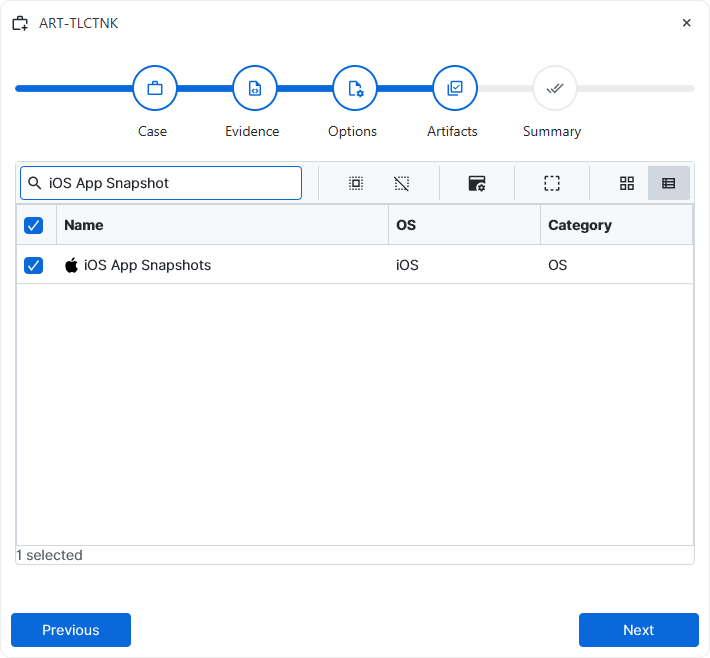

After a case has been created and evidence has been added for the
investigation, at the Artifact Selection phase, the iOS App Snapshots
artifact parser can be selected.
×

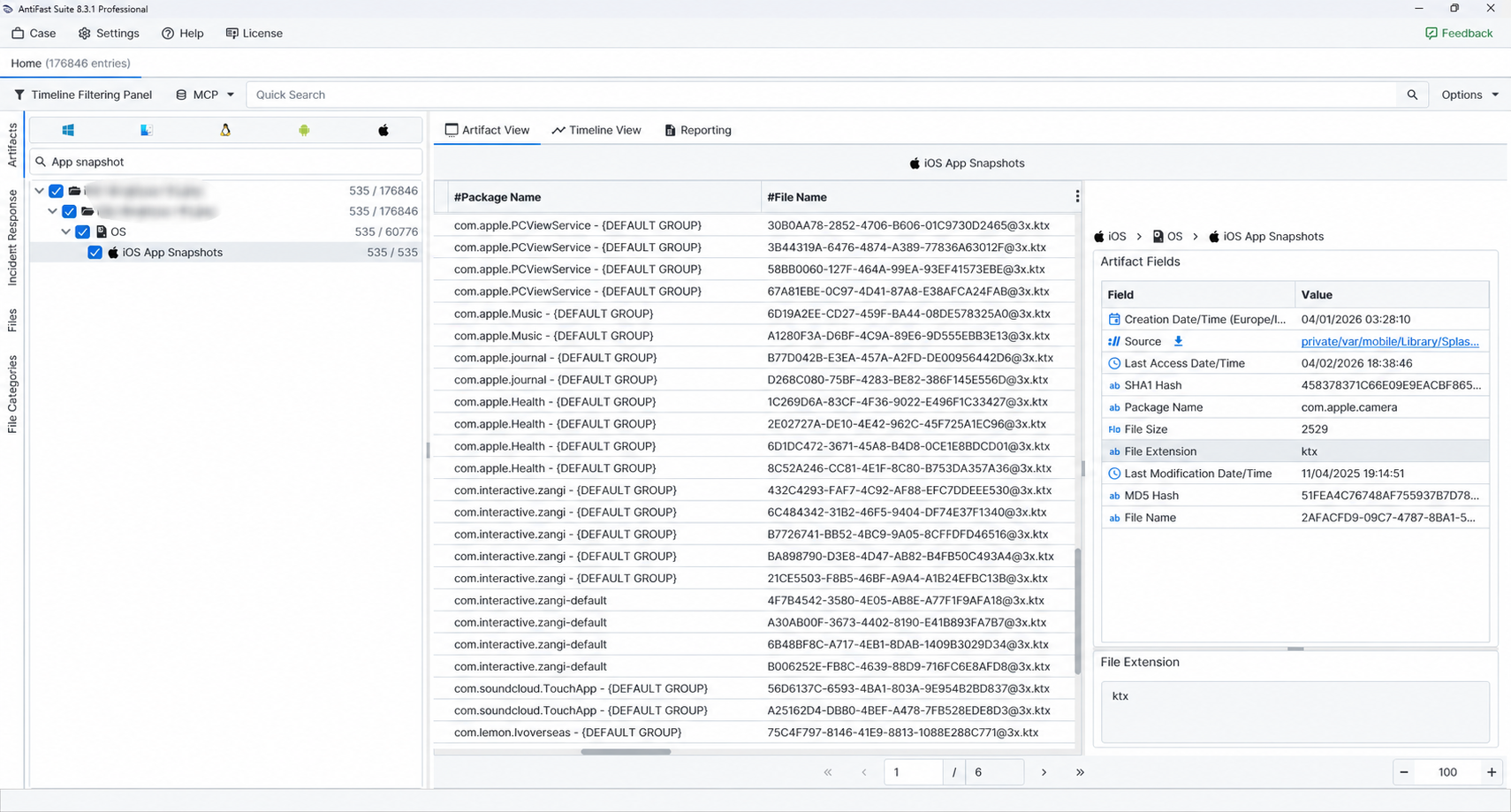

Once the ArtiFast parser plugins complete processing the artifact for analysis, it can be reviewed via Artifact View or Timeline View, with indexing, filtering, and searching capabilities. Below is a detailed description of iOS App Snapshots artifact in ArtiFast.
iOS App Snapshots
- Package Name: Identifies the iOS bundle or package associated with the snapshot file.
- File Name: Preserves the recovered name of the snapshot file.
- File Extension: Lists the file extension recorded for the snapshot file.
- File Size: Stores the size value recorded for the snapshot file.
- Last Modification Date/Time: Captures the file-system modification time retained for the snapshot file.
- Last Access Date/Time: Captures the file-system access time retained for the snapshot file when available.
- MD5 Hash: Contains the MD5 value calculated for the snapshot file.
- SHA1 Hash: Contains the SHA1 value calculated for the snapshot file.
For more information or suggestions please contact: enes.cihan@forensafe.com
